Using Python and SQL to Map Wikipedia by Page Category
Hypothesis
I hypothesize that the links between the categories of the webpages in wikipedia will show the connections between various categories and may reveal origins of fields that may be unintuitive.
The complete code can be found on github here.
Method
To solve this problem I separate the problem into 2. To begin, I create a web-scraper that starts at either a page from a sqlite database, or begins at the wikipedia homepage. The home page has a variation of different links that change every day so it is a good place to start to ensure a variation of wikipedia pages of different categories. The web-scraper iterates through the links on a wikipedia page and stores them in a sqlite database.
Once it has stored all the links in a given page, it moves to the next page in the database. Obviously this can go on ad infinitum so the pages are limited (to say 60) at a time, so we don't anger the internet service provider. The ultimate goal would be a databse of all the links in wikipedia.
Python Webscraping Script
See here ▼
import sqlite3
from lxml import html
import requests
# Open connection
conn = sqlite3.connect('wikiLinks.sqlite')
cur = conn.cursor()
cur.executescript('''
/*
Uncomment below to reset tables
*/
/*
DROP TABLE IF EXISTS Links;
DROP TABLE IF EXISTS Category;
CREATE TABLE Links (
id INTEGER NOT NULL PRIMARY KEY AUTOINCREMENT UNIQUE,
link TEXT UNIQUE,
parent INTEGER,
topic INTEGER
);
CREATE TABLE Category (
id INTEGER NOT NULL PRIMARY KEY AUTOINCREMENT UNIQUE,
topic TEXT UNIQUE
)
*/
''')
# Helper function to grab all links from the url tree and insert into database
def get_urls(url_tree, parent_id):
for child in url_tree.iter():
try:
if child.tag == 'a':
# print(child.get('href'))
cur.execute('''INSERT OR IGNORE INTO Links (link, parent)
VALUES ( ?, ? )''', ( child.get('href'), parent_id) )
except: continue
return None
# Initialise at the main page since it changes everyday
init_url = 'https://en.wikipedia.org/wiki/Main_Page'
pages = 20 # get all links from this number of pages
cur.execute('SELECT COUNT(link) FROM Links ')
init = int(round(cur.fetchone()[0] / 100.)) # start from database length/100 so we dont repeat
for i in range(pages):
# grab id from inital link
cur.execute('SELECT link FROM Links WHERE id = ? ', (init + i, ))
try: url = cur.fetchone()[0]
except: url = None
if url:
cur.execute('SELECT id FROM Links WHERE link = ? ', (init_url, ))
parenturl_id = cur.fetchone()[0]
try:
page = requests.get('https://en.wikipedia.org' + url)
tree = html.fromstring(page.content)
# all the links in the main content in the class 'mw-content-ltr'
tree_body = tree.find_class('mw-content-ltr')
tree_body=tree_body[0] # in list type for some reason
t1 = get_urls(tree_body, parenturl_id) # grab the urls from the tree
except: continue
conn.commit()
Next, the categories of the links are plotted in a network. A python script goes through a given amount of the wikipedia links from the sqlite database and returns their category. The script also goes to the link associated with the category and continues, i.e. 'electromagnetism -> subfields of physics -> physics -> physical sciences -> natural sciences -> nature ...'
Each node of the network represents one webpage, and a connection from one node to another represents a hyperlink on one webpage, linking to the other.
Python Network Plotting Script
See here ▼
import sqlite3
from lxml import html
import requests
import networkx as nx
from pylab import *
conn = sqlite3.connect('wikiLinks.sqlite')
cur = conn.cursor()
cur.executescript('''
/*
Uncomment out the bottom section is want to reset the tables
*/
/*
DROP TABLE IF EXISTS Links;
DROP TABLE IF EXISTS Category;
CREATE TABLE Links (
id INTEGER NOT NULL PRIMARY KEY AUTOINCREMENT UNIQUE,
link TEXT UNIQUE,
parent INTEGER,
topic INTEGER
);
CREATE TABLE Category (
id INTEGER NOT NULL PRIMARY KEY AUTOINCREMENT UNIQUE,
topic TEXT UNIQUE
)
*/
''')
# Helper function to find link of given key in the html tree
def lookup(d, key):
found = False # want to find the tag after the key
for child in d.iter(): # iterate through html tree
if not found: # keep iterating unitl found is True
try:
if child.tag == 'a' and (key in child.text): # a finds the links
# print(child.text)
found = True
except: continue
else: # when found is True
if child.tag == 'a': # make sure it is a link
# print(child.text, child.attrib)
found = False
return child
G = nx.Graph() # Initialize graph
startpage = 40 # start index of database
testpages = 60 # How many links
for i in range(testpages): # iterate through links
cur.execute('SELECT link FROM Links WHERE id = ? ', (startpage + i, ))
try:
url = 'https://en.wikipedia.org' + cur.fetchone()[0] # database only contains latter part of link
page = requests.get(url) # go to URL
tree = html.fromstring(page.content) # get html tree
t1 = lookup(tree, 'Categories') # look for link after 'categories'
newtree = tree
categories = ['first'] # initialise category list
# while loop to find where catergory list should end
while t1.text != None and 'categor' not in categories[-1] and categories[-1] not in categories[:-2]:
t1 = lookup(newtree, 'Categories')
categories.append(t1.text)
newurl = 'https://en.wikipedia.org' + t1.get('href')
if categories[-2] != 'first':
G.add_edge(categories[-1], categories[-2]) # add to graph if not the first in the list
# print(t1.text)
newpage = requests.get(newurl)
newtree = html.fromstring(newpage.content)
# print(categories)
# update database
if len(categories) >= 2:
cur.execute('''INSERT OR IGNORE INTO Category (topic)
VALUES ( ? )''', ( categories[-2], ) )
cur.execute('SELECT id FROM Category WHERE topic = ? ', (categories[-2], ))
category_id = cur.fetchone()[0]
else:
category_id = 'Null'
cur.execute('''UPDATE Links SET topic = ?
WHERE id = ?''', (category_id, startpage + i) )
except: continue
conn.commit() # commit to database
# plot network plot
pos = nx.spring_layout(G)
nx.draw_networkx_nodes(G,pos,node_size=100,node_color='b')
nx.draw_networkx_edges(G,pos,width=1)
nx.draw_networkx_labels(G,pos,font_size=8,font_family='sans-serif',font_color='r')
savefig("wikiNetwork.png")
show()

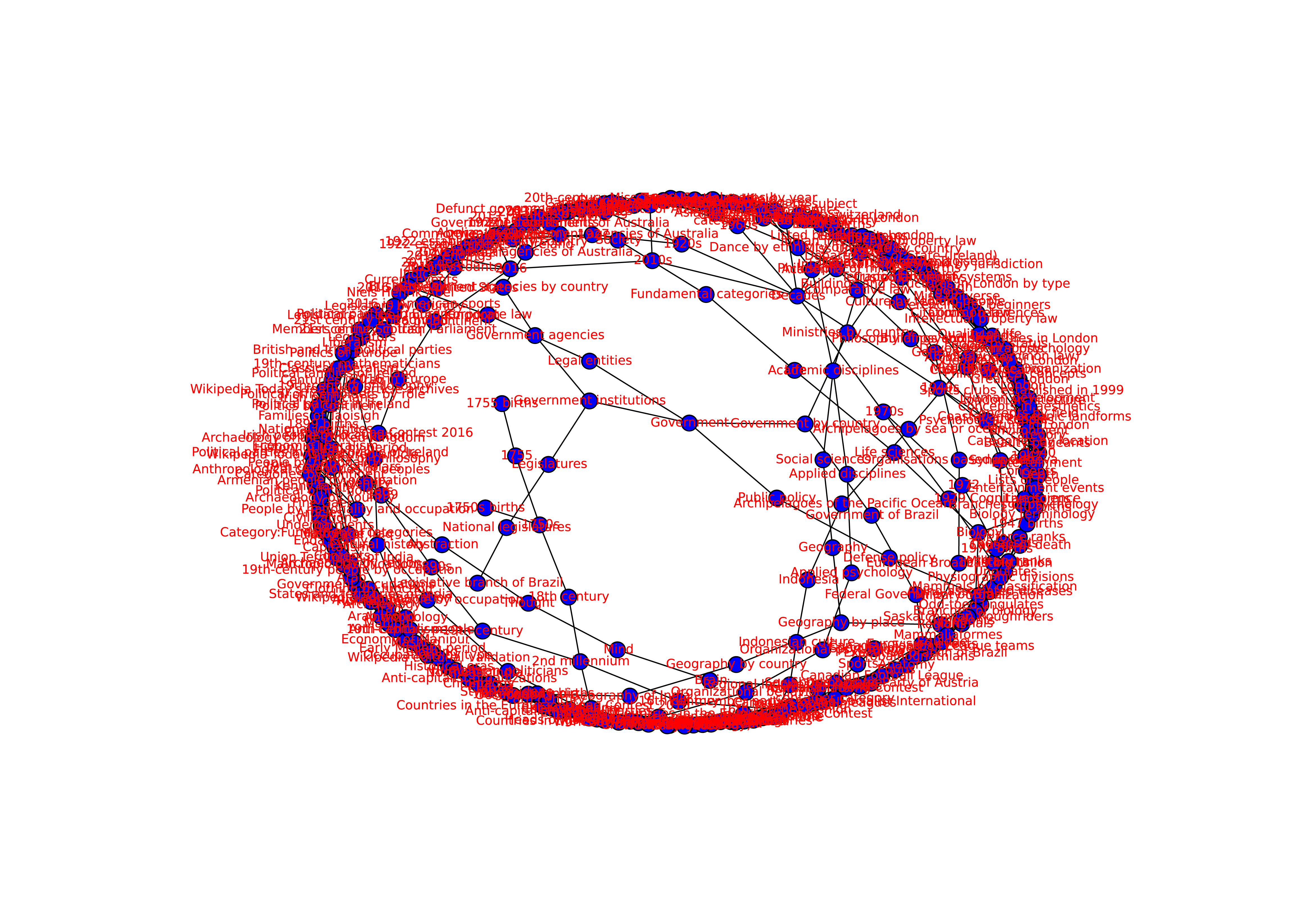

The resulting network is then read from the sqlite database, plotted and saved to a png.
Conclusion
Though the web scraper works very well and the database of hyperlinks for webpages is populated very quickly, even for 60 links (plus all the webpages within each) the network graph is very crowded. Plotting the network on a map may not be the best way to visualize the interconnections between the webpages of wikipedia.
A better approach would be bin the webpages in categories and plot the correlations between webpage categories in a 2D histogram. Using a 2D histogram, although we lose the information of the name of the webpage, as the network plot shows, a much greater number of pages could be shown on the same graph. For each entry in the bins of the 2D histogram, would represent a hyperlink from one category (shown on the x-axis), to another catgory (shown on the y-axis). plot.ly have a number of good examples, and would make a good project for another time.
